A truck that starts after a jump but is dead again the next morning is not a battery problem until testing proves it. Truck battery drain diagnosis identifies whether the batteries are losing power while parked, failing to hold capacity, or never receiving a proper charge in the first place. For commercial trucks, mixer trucks, and jobsite equipment, getting this distinction right prevents repeat no-starts, missed dispatches, and unnecessary battery replacements.
Start With the Operating Pattern
The timing of the failure points the diagnostic process in the right direction. A truck that will not restart immediately after a run may have a charging-system issue, loose connection, excessive starter draw, or batteries that collapse under load. A truck that starts normally after operation but is dead after sitting overnight or through a weekend is more likely to have a key-off electrical draw or weak battery capacity.
Ask what changed before the issue began. Added lighting, inverters, GPS equipment, cameras, liftgate circuits, refrigeration units, body controls, and mixer-truck accessories can all introduce a draw or expose a weak connection. Water intrusion after heavy rain, recent body work, a collision repair, or an electrical modification also deserves attention.
Do not overlook operating conditions. Houston heat shortens battery life, accelerates corrosion, and can push an already marginal battery over the edge. Long idle periods, frequent short runs, and trucks parked for extended periods can leave batteries undercharged even when the alternator itself is functional.
Battery Drain Diagnosis Begins at the Batteries
Heavy-duty trucks commonly use multiple batteries, and one failing battery can pull down the entire bank. A visual inspection is useful, but it is not a diagnosis. Technicians check battery case condition, terminal corrosion, cable routing, hold-down security, and grounds before applying a meter or load tester.

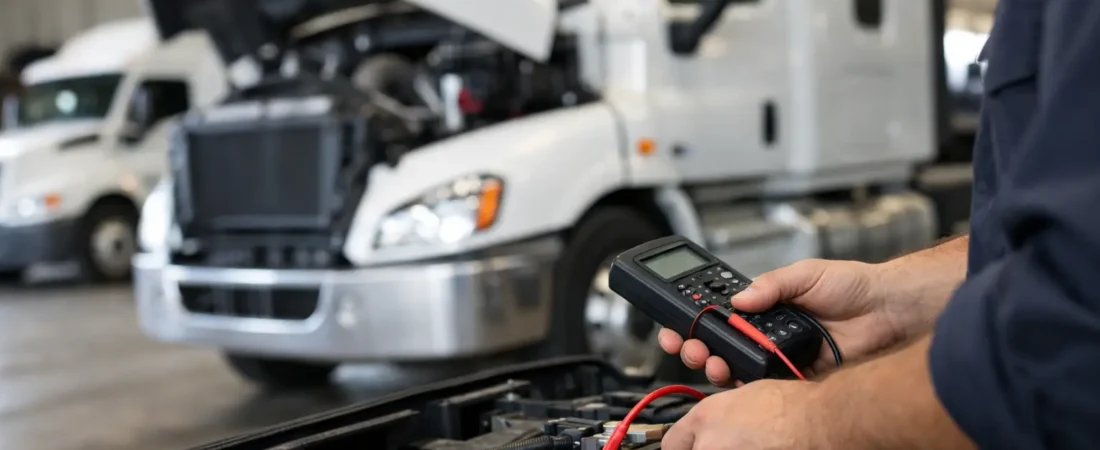

Battery voltage provides an initial clue, but voltage alone does not prove battery health. A battery can show acceptable surface voltage and still have low reserve capacity or an internal defect. Proper testing includes state of charge, conductance or load testing, and comparison between batteries in the bank. Batteries should be tested individually when possible, not treated as one unit.
Cable condition matters just as much. Corroded terminals, loose crossover connections, damaged cables, and poor frame or engine grounds create resistance that can mimic a dead battery. The truck may crank slowly, show erratic dash behavior, or set low-voltage fault codes even though the batteries appear charged. Voltage-drop testing under load finds resistance that a simple visual inspection may miss.
Watch for Mismatched Batteries
A mixed battery bank is a frequent repeat-failure problem. Different battery ages, capacities, or reserve ratings charge and discharge at different rates. The stronger batteries continually compensate for the weak one until the whole system becomes unreliable. When replacement is needed in a multi-battery system, the right repair may be a matched set rather than a single new battery added to old units.
Separate a Charging Fault From a Parasitic Draw
Once battery condition and connections are verified, the next question is simple: Is the truck failing to charge, or is it consuming power while shut down?
A charging-system check evaluates alternator output, belt condition, wiring, battery-sense circuits, and voltage regulation. On newer trucks, charging strategy may be controlled or influenced by the engine control module and body electrical system. An alternator can produce voltage at idle yet fail to maintain the battery bank under real electrical load. Testing should include loaded conditions with headlights, HVAC blowers, work lights, and applicable auxiliary equipment operating.
A parasitic draw is different. It is electrical current that remains active after the truck has been shut down and its control modules should be asleep. Some key-off current is normal. ECM memory, telematics, alarm systems, and certain body controllers require a small standby load. The concern is excessive draw that drains batteries faster than the truck can recover during normal operation.
On a heavy-duty truck, accurate draw testing takes patience. Opening doors, cycling ignition, plugging in a diagnostic tool, or disturbing a module can wake the network and temporarily raise current. A technician must allow the truck enough time to enter sleep mode before evaluating the stabilized key-off draw. Testing too soon can produce a false result and lead to wasted repair time.
Finding the Circuit That Stays Awake
After confirming excessive key-off current, the work becomes circuit isolation. The technician monitors current while systematically checking fuses, relays, modules, and accessory circuits. The goal is not to remove fuses at random. It is to identify the circuit that causes the draw to drop and then trace the components supplied by that circuit.
Common causes include a stuck relay, glove-box or compartment light, damaged trailer wiring, aftermarket accessories, corroded connectors, a failing body control module, or equipment controls that do not power down. On vocational and mixer trucks, the investigation may also extend to hydraulic controls, PTO circuits, chute lighting, washout systems, remote-control receivers, and body-mounted electrical panels.
Trailer connections deserve close attention. A damaged trailer harness can backfeed power, hold a circuit active, or create intermittent faults that only appear when a specific trailer is connected. If the truck drains only when hooked to certain equipment, the source may be outside the tractor itself.
Intermittent Draws Need Real-World Testing
Not every draw is present continuously. A module may wake periodically because of a communication fault. Moisture can bridge a connector only after rain. A relay may stick only when the truck is hot. These cases require a methodical approach, sometimes including extended current monitoring and inspection while the affected equipment is connected.
This is where replacing parts based on suspicion becomes expensive. A new alternator will not correct a body-control circuit that stays awake. New batteries will not solve an inverter wired incorrectly to constant power. Accurate testing protects the repair budget and keeps the truck from returning with the same no-start condition.
Avoid Shortcuts That Create More Downtime
Repeated jump-starting is a temporary recovery step, not a repair. Deeply discharging commercial batteries reduces service life, and low voltage can create additional faults in engine, transmission, emissions, and body-control systems. A truck may start after a boost but still have weak batteries and an unresolved draw waiting for the next shutdown.
Disconnecting batteries every time the truck is parked is also not a practical long-term solution. It can erase learned settings, interrupt telematics, create preventable startup issues, and leave the underlying fault untouched. Battery disconnect switches have legitimate fleet uses, but they should not substitute for diagnosis when a truck is expected to remain ready for dispatch.
Avoid installing a larger alternator or higher-capacity batteries before determining the cause. Additional capacity can mask a draw for a while, but it does not eliminate it. It may simply allow the fault to drain power over a longer period, leaving the truck stranded farther from the yard.
When Mobile Heavy-Duty Diagnostics Makes Sense
A no-start truck at a customer site, concrete plant, jobsite, or loading area often cannot wait for a tow and an open shop bay. Mobile diagnostics allow the electrical system to be tested where the failure occurred, including connected trailers, body equipment, and the actual operating setup that may be causing the drain.
AP Diesel Diagnostics provides on-site heavy-duty electrical troubleshooting for fleets and operators in Houston, Baytown, Humble, and surrounding areas. The service approach is focused on verifying battery health, charging performance, cable integrity, and key-off draw before repairs are made. That means less time spent guessing and a better chance of returning the asset to service without a repeat breakdown.
For fleet operators, document recurring battery failures by unit, date, weather, parking duration, connected equipment, and recent repairs. That information can reveal patterns a single no-start event may hide. It also helps determine whether the problem belongs to one truck, a trailer, a specific accessory package, or a fleet-wide maintenance practice.
A reliable truck should still be ready when the driver returns to it. If batteries are going flat between shifts, treat the condition as an uptime issue now, before it becomes a missed load, delayed pour, or roadside service call at the worst possible time.
